233 - starter motor (engine) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
CD20T	05.1994 - 01.1997	三菱

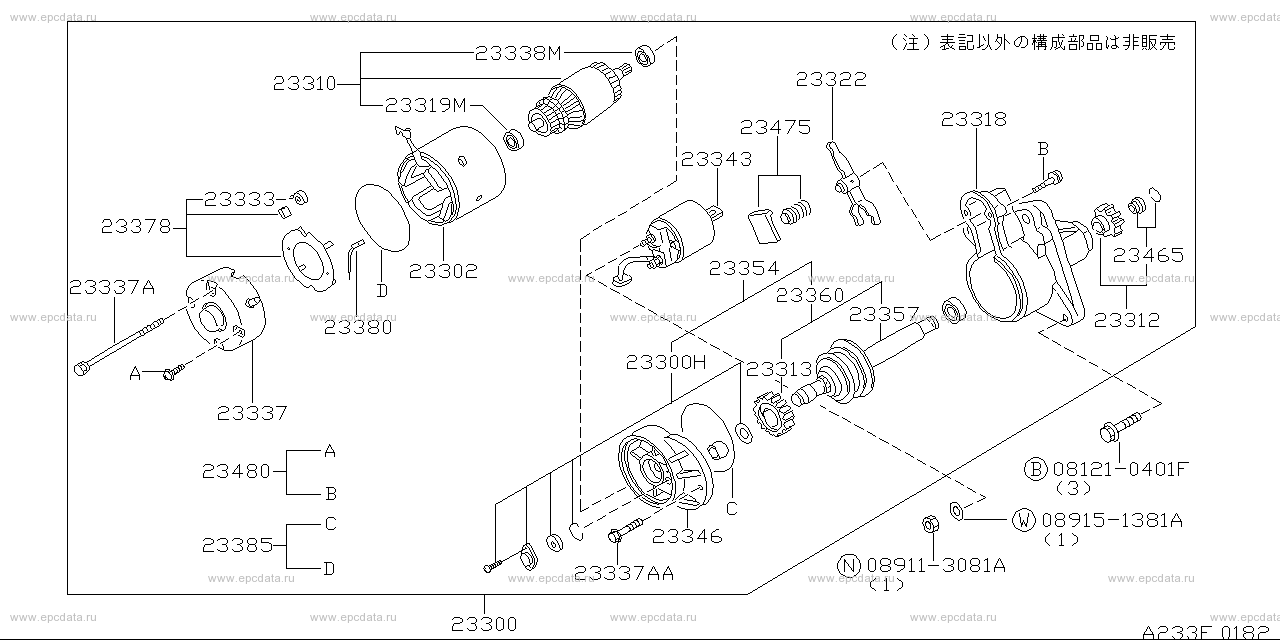

Open full screen picture Up to the top

081210401F 089113081A 089151381A 23300 - motor assembly, starter 23300H - cover, starter motor 23302 - yoke assembly 23310 - armature assembly 23312 - pinion assembly 23313 - gear 23318 - case assembly, gear 23319M - bearing, gear case 23322 - lever set, shift 23333 - spring, brush 23337 - cover assembly, rear 23337A - bolt, through 23337AA - bolt, through 23338M - bearing, rear cover 23343 - switch assembly, magnetic 23346 - housing, center 23354 - clutch assembly 23357 - shaft, pinion 23360 - gear & shaft set 23378 - holder assembly, brush 23380 - brush, plus 23385 - packing 23465 - stopper set, pinion 23475 - spring set 23480 - screw set

---

Applies for models	Manufacture period	Spec
*CD20 +*CD20T	05.1994 - 01.1997	三菱
*CD20 +*CD20ET	01.1997 - 01.1998	三菱

Open full screen picture Up to the top

081210401F 089113081A 089151381A 23300 - motor assembly, starter 23300H - cover, starter motor 23302 - yoke assembly 23310 - armature assembly 23312 - pinion assembly 23313 - gear 23318 - case assembly, gear 23319M - bearing, gear case 23322 - lever set, shift 23333 - spring, brush 23337 - cover assembly, rear 23337A - bolt, through 23337AA - bolt, through 23338M - bearing, rear cover 23343 - switch assembly, magnetic 23346 - housing, center 23354 - clutch assembly 23357 - shaft, pinion 23360 - gear & shaft set 23378 - holder assembly, brush 23380 - brush, plus 23385 - packing 23465 - stopper set, pinion 23475 - spring set 23480 - screw set

---

Applies for models	Manufacture period	Spec
CD20ET	01.1997 - 01.1998
CD20ET	01.1998 - ...

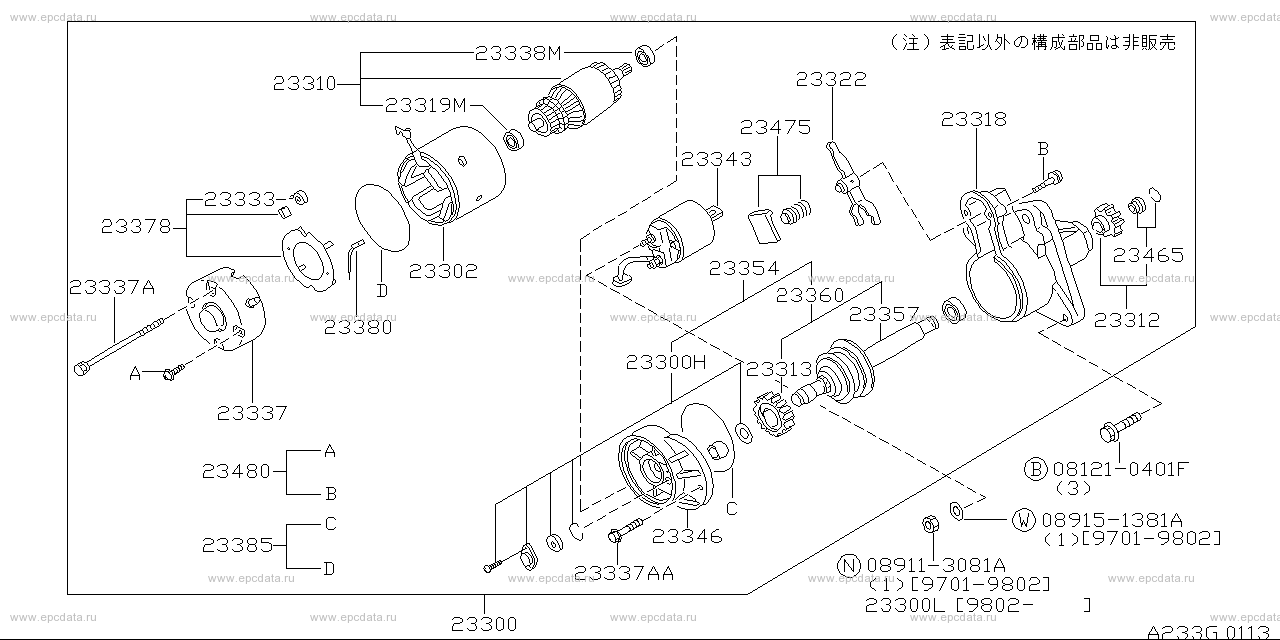

Open full screen picture Up to the top

081210401F 089113081A 089151381A 23300 - motor assembly, starter 23300H - cover, starter motor 23300L - nut 23302 - yoke assembly 23310 - armature assembly 23312 - pinion assembly 23313 - gear 23318 - case assembly, gear 23319M - bearing, gear case 23322 - lever set, shift 23333 - spring, brush 23337 - cover assembly, rear 23337A - bolt, through 23337AA - bolt, through 23338M - bearing, rear cover 23343 - switch assembly, magnetic 23346 - housing, center 23354 - clutch assembly 23357 - shaft, pinion 23360 - gear & shaft set 23378 - holder assembly, brush 23380 - brush, plus 23385 - packing 23465 - stopper set, pinion 23475 - spring set 23480 - screw set

Vanette Serena KVC23
